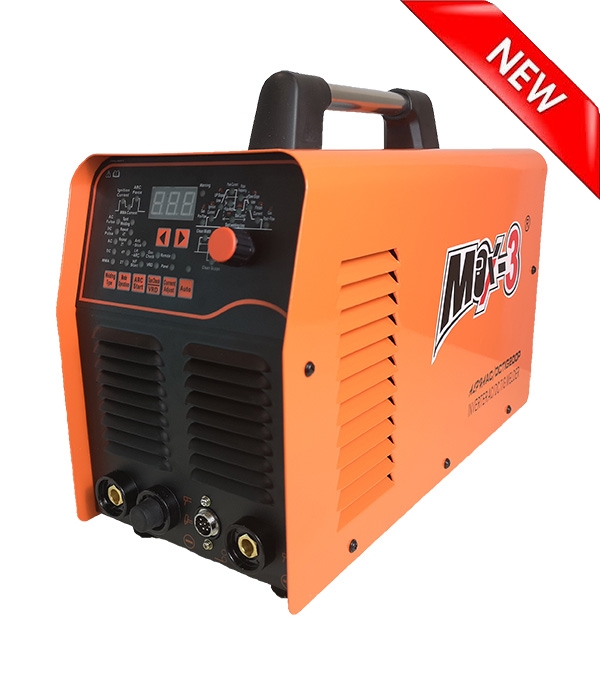

Max3: TIG Welding Machine

Specification

Rated Input Voltage (V)	:	1ph-240V (50/60Hz)
Power Frequency (Hz)	:	50/60
Rated Input Current (A)	:	29(AC TIG); 25(DC TIG); 31(MMA)
Rated Input Power (KVA)	:	6.9(AC TIG); 6.0(DC IG); 7.4(MMA)
No-load Voltage (V)	:	65
Pulse Frequency (Hz)	:	0.2-500(DC); 0.2-20(AC)
Welding Current (A)	:	30~200(AC TIG); 10~200(DC TIG); 10~180(MMA)
Welding Voltage (V)	:	11.2~18(AC TIG); 10.4~18(DC TIG); 20.4~27.2(MMA)
Efficiency (Rated Conditions)	:	≥0.85
Current Up Slope Time (S)	:	0~15
Current Down Slope Time (S)	:	0~15
Gas Pre-flow Time (S)	:	0~99.9
Gas Post-flow Time (S)	:	0~99.9
Rated Duty Cycle%(40℃)	:	20%(AC TIG); 15%(C TIG); 15%(MMA)
Insulation Class	:	F
Protection Grade	:	IP21S
Dimention (mm)	:	465200335
Net Weight (kg)	:	13KGS
Type of Cooling	:	Air Cooling
Pulse and Empty Ratio(%)	:	1~99
AC Frequency (Hz)	:	20~150
AC Clean Width (%)	:	-40~+40
AC Clean Scope (%)	:	-20~+20

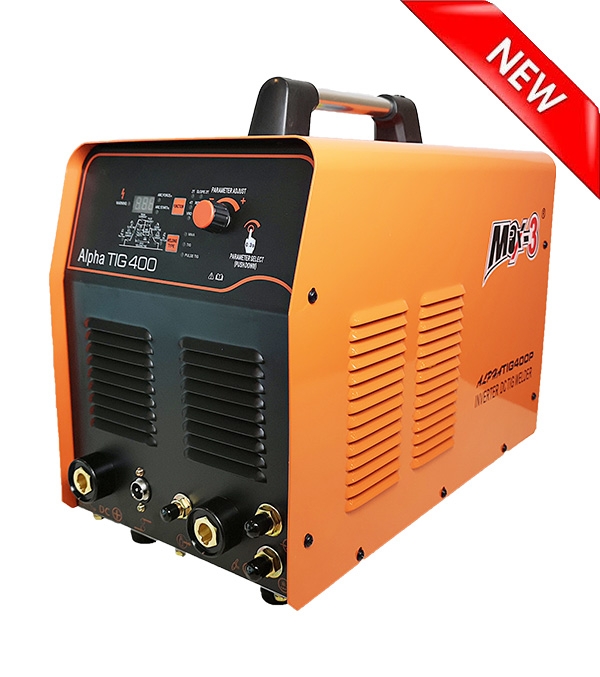

TIG400P

Specification

Rated Input Voltage (V)	:	3ph-415V (50/60Hz)
Power Frequency (Hz)	:	50/60
Rated Input Current (A)	:	26
Rated Input Power (KVA)	:	15.8
No-load Voltage (V)	:	81
Pulse Frequency (Hz)	:	0.2-500
Welding Current (A)	:	10~400
Welding Voltage (V)	:	10.4-26
Efficiency (Rated Conditions)	:	≥85%
Current Up Slope Time (S)	:	0~15
Current Down Slope Time (S)	:	0~15
Gas Pre-flow Time (S)	:	0~2
Gas Post-flow Time (S)	:	0~20
Rated Duty Cycle%(40℃)	:	30%
Insulation Class	:	F
Protection Grade	:	IP21S
Dimention (mm)	:	500260390
Net Weight (kg)	:	18KGS
Type of Cooling	:	Water Cooling
Pulse Width (%)	:	1~99
Arc Start Current (MMA)(A)	:	0~300
Arc Force Current (MMA)(A)	:	0~300
Ignition Current (A)	:	10~400
Crater Current (A)	:	10~400
Peak Current (A)	:	10~315
Base Current (A)	:	10~315

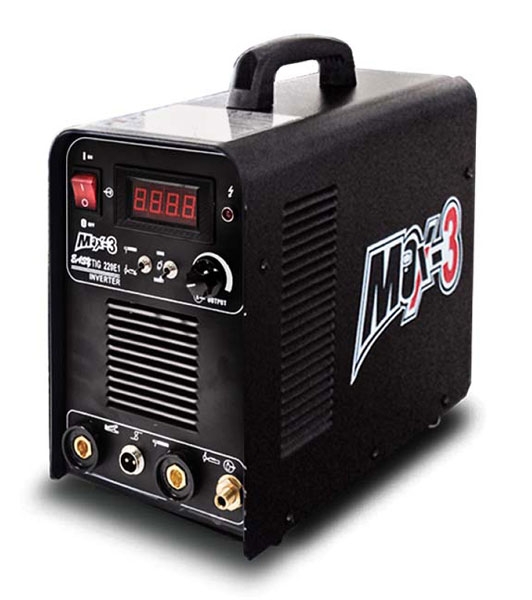

TIG220E1

Feature

Stick Welding and TIG Welding, function 2 in 1
By means advanced inverter technology
PWM control system provides constant current and precise current control
High efficiency, minimum no-load consumption and economical energy usage.
Elegant shape of seam with smooth arc striking.
Small in size, firm in structure and light for carry, especially suitable for high altitude and mobile operation.

Accessories Includes

Input power cord
Earth cable and clamp
WP-26 TIG Welding Torch

Specification

Rated Input Voltage	:	AC240V / 1ph(50/60Hz)
Rated Input Current (A)	:	20
Rated Input Power (KVA)	:	4.4
No-load Voltage (V)	:	56
Welding Current (A)	:	10 ~ 200
Welding Voltage (V)	:	10.2 ~ 18
Rated Duty Cycle (%)	:	60%
DC ARC/TIG	:	Yes
Pulse function	:	Nil
Thickness (Stainless Steel)	:	> 0.3MM Thin Sheet
Packaging Size (mm)	:	450 x 280 x 355
Weight (kg)	:	11

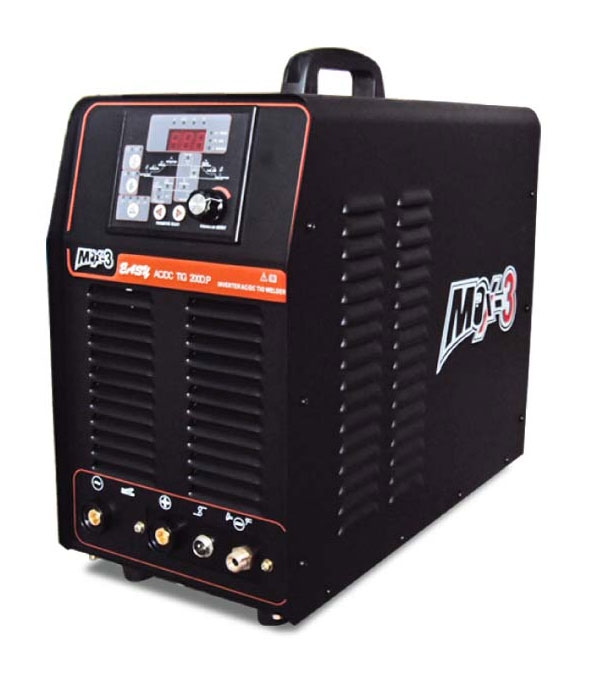

ACDCTIG200D.P

Feature

Advanced stable digital control system, provides various adjustable parameters
AC TIG, DC TIG, STICK function 3 in 1
By means of advanced inverter technology
Advanced Stable digital control system, provides various adjustable parameter.
High efficiency, minimum no-load consumption and economical energy usage.
Elegant shape of seam with smooth arc striking.
Small in size, firm in structure and light for carry, especially suitable for high altitude and mobile operation.

Accessories Includes

Input power cord
Earth cable
Water Cooling
Argon Regulator
WP-26 TIG Welding Torch

Specification

Rated Input Voltage	:	240V / 1ph(50/60hz)
Polarity	:	AC / DC
Rated input current(A)	:	29
Rated Input Power (KVA)	:	4.2
Output Current Range (A)	:	18
Rated Output Voltage (V)	:	35
No-load Voltage (V)	:	72
Welding Current (A)	:	15-200
Duty Cycle (%)	:	35
Arc-starting	:	HF
Efficiency (%)	:	85
Power Factor	:	0.85
Insulation Class	:	F
Protection Class of Case	:	IP21
Post Gas (S)	:	2-10
Pre-Flow (S)	:	0-2
Clean Width (%)	:	20-80
Down-Slope Time (S)	:	0-10
Max welding thickness with AC (mm)	:	4
Overall Dimension (mm)	:	530x247x480
Weight (kg)	:	27

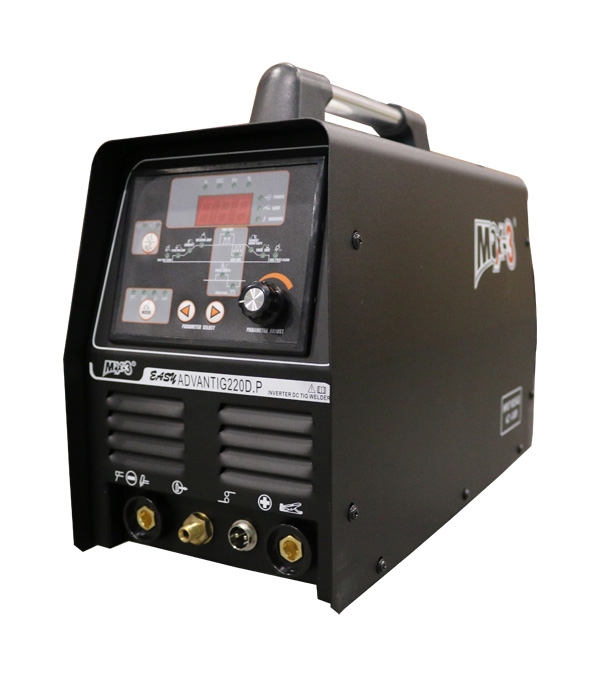

ADVTIG220D.P

The inverter EASY ADVANTIG220D.P Series designed for portable, heavy duty and highly reliable applications using Surface Mount Technology (SMT). With advance features of Pulse TIG welding start, constant Arc Control designed for TIG welding of steel and other DC weld - able materials.

Specification

Rated Input Voltage	:	240 volt ±10% 1 phase (50/60Hz)
Rated Input Current (A)	:	19.8
Welding Current (A)	:	10 - 200
No-load Voltage	:	64
Rated Duty Cycle	:	60%@200
Insulation Grade	:	F
Welding Voltage (V)	:	20.8 - 28
Rated Input Power (KVA)	:	4.6
Type Of Cooling	:	Air Cooling
Cover Protection Level	:	IP21S
weight	:	10Kgs
Packaging Size (mm)	:	532 x 290 x 378

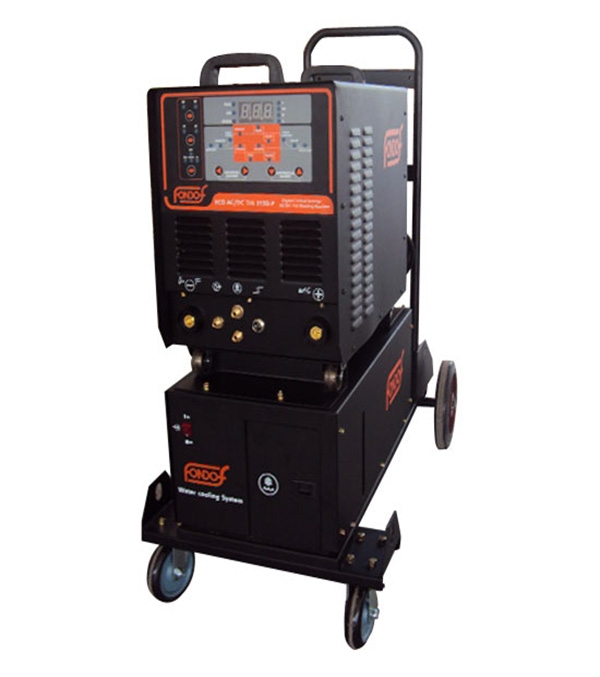

ACDCTIG315P(WCS)

Feature

Advanced stable digital control system, provides various adjustable parameters
AC TIG, DC TIG, STICK function 3 in 1
By means of advanced inverter technology
Advanced Stable digital control system, provides various adjustable parameter.
High efficiency, minimum no-load consumption and economical energy usage.
Unique inverter technology realizes the transition rate 30% higher than regular machine.
Elegant shape of seam with smooth arc striking.
Small in size, firm in structure and light for carry, especially suitable for high altitude and mobile operation.
Water cooling available for 315A and above.

Accessories Includes

Input power cord
Earth cable system
Water Cooling
Argon Regulator
WP-18 TIG Welding Torch

Specification

Rated Input Voltage (V/PH/Hz)	:	415V/3PH/50/60Hz
Rated Input Current (A)	:	13
Rated Input Power (KVA)	:	8.6
Output Current Range (A)	:	15-315
Polarity	:	AC / DC
Welding Current (A)	:	20 - 315
Rated Duty Cycle (%)	:	60%/315A/24V 100%/244/19.8V
Post Gas (S)	:	IP21
Pre-Flow (S)	:	2-10
No-load Voltage (V)	:	60
Pulse Frequency (Hz)	:	0.2 - 500 (DC) 0.2 - 20 (AC)
Pulse & Empty Ration (%)	:	1 - 99
AC Frequency (Hz)	:	20 - 100
AC Clean Width (%)	:	-40 ~ +40
AC Clean Slope (%)	:	-20 ~ +20
Current Up/Down Slope Time (S)	:	0 - 15
Gas Pre-Flow Time (S)	:	0 - 3
Gas Post-Flow Time (S)	:	0 – 99.9
Rated Duty Cycle (%)	:	35 % @ 315 50% @ 241 100% @ 166
Efficiency (under rated condition)	:	≥0.85
Power Factors	:	0.7 – 0.9
Insulation Grade	:	IP21S
Cooling Method	:	Air Cooling
Max Welding Thickness with AC (mm)	:	8
Overall Dimension (mm)	:	500X310x510
Weight (kg)	:	35
