MAX3: MIG/MAG Welding Machine

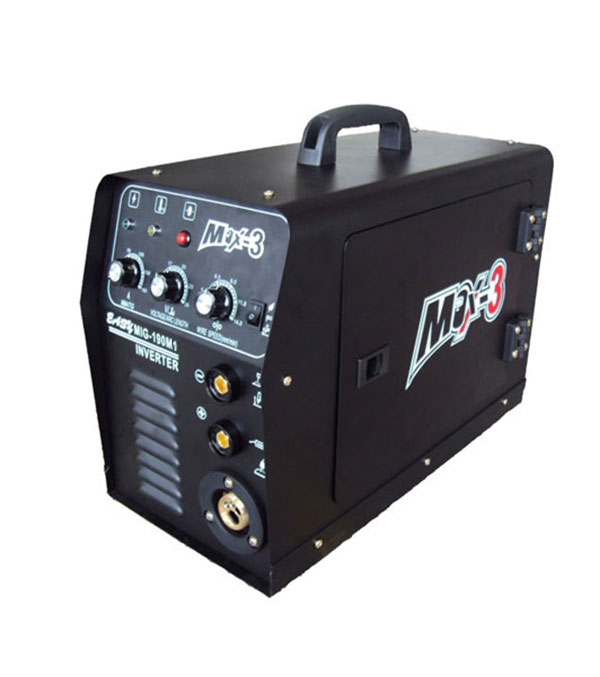

  • MIG190M1 MIG190M1
    • MIG190M1

    MIG190M1

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Welding current and voltage preset function

    Optional Features

    • Positive and negative connection in reverse

    Accessories Includes

    • Input power cord
    • Earth cable
    • MB15 MIG Welding Torch
    • CO² Regulator

    Specification

    Rated Input Voltage (V): 1PH 240V / 50-60Hz
    Rated Input Current (A): 21
    Max Effective Input Current (left X A): 13
    Rated Input Power (KVA): 4.8
    Wire Speed: 1.5 - 14
    Welding Current (A) -MMA: 30 - 160
    Welding Current (A) -MIG: 30 - 160
    Welding Voltage - MIG: 11 - 26
    No-load Voltage (V): 60
    Duty Cycle: 95A/100%; 135A/60%
    Wire Diameter: ø0.6-0.8
    Welding Thickness (mm): >5
    Cover Protection: IP21S
    Insulation: F
    Packaging Size (mm): 620 x 397 x 445
    Weight (kg): 18

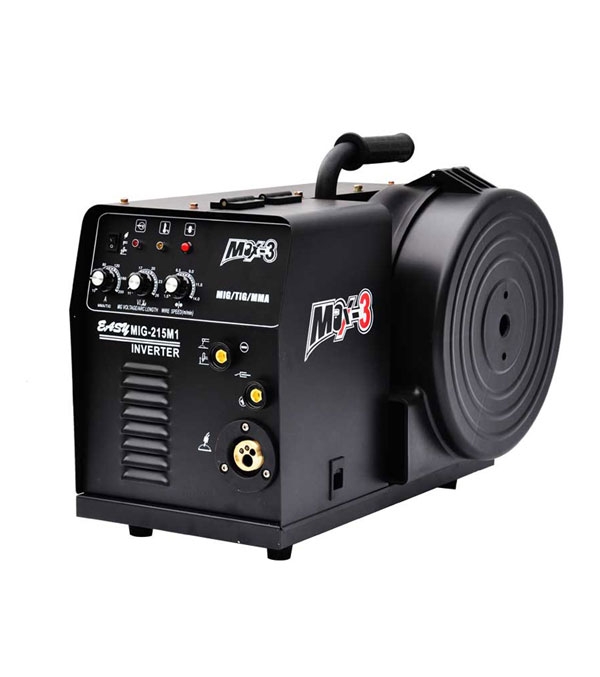

  • ADVMIG215M1 ADVMIG215M1
    • ADVMIG215M1

    ADVMIG215M1

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Welding current and voltage preset function

    Application

    • Carbon Steel

    Optional Features

    • Positive and negative connection in reverse

    Accessories Includes

    • Input power cord
    • Earth cable
    • MB15 MIG Welding Torch
    • CO² Regulator

    Specification

    Rated Input Voltage (V): 1PH 240V / 50-60Hz
    Rated Input Current (A): 26
    Max Effective Input Current (left X A): 15
    Rated Input Power (KVA): 5.8
    Wire Speed: 1.5 - 14
    Welding Current (A) -MMA: 30 - 200
    Welding Current (A) -MIG: 30 - 200
    Welding Voltage - MIG: 11 - 26
    No-load Voltage (V): 60
    Duty Cycle: 118A/100%; 152A/60%
    Wire Diameter: ø0.6-0.8-1.0
    Welding Thickness (mm): >8
    Cover Protection: IP21S
    Insulation: F
    Packaging Size (mm): 660 x 440 x 525
    Weight (kg): 21

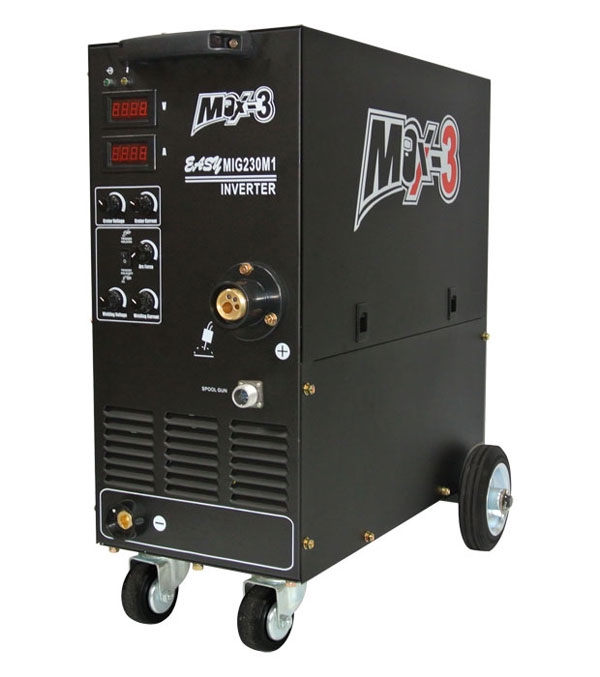

  • ADVMIG230M1 ADVMIG230M1
    • ADVMIG230M1

    ADVMIG230M1

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Welding current and voltage preset function

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable
    • MB15 MIG Welding Torch
    • CO² Regulator

    Specification

    Rated Input Voltage: 1PH 240V / 50/60Hz
    Rated Input Current (A): 26
    Max Input Current Left (A): 15
    Rated Input Power (KVA): 5.8
    Welding Current (A): 30%@200
    Welding Voltage: 11 - 26
    Dia. of Wire (M/min): 0.8 - 1.0
    Welding Thickness (mm): >10
    Cover Protection Grade: IP21S
    Insulation Grade: F
    Weight (kg): 25
    Packaging Size (mm): 790 X 480 X 760

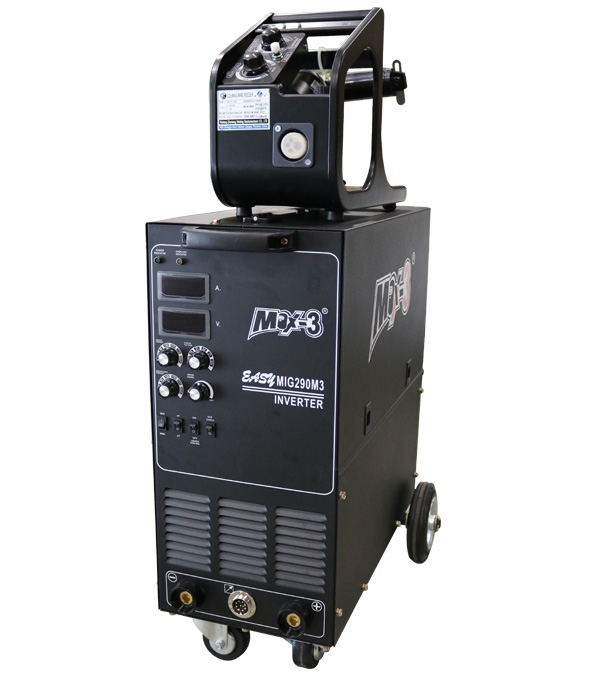

  • MIG290M3N MIG290M3N
    • MIG290M3N

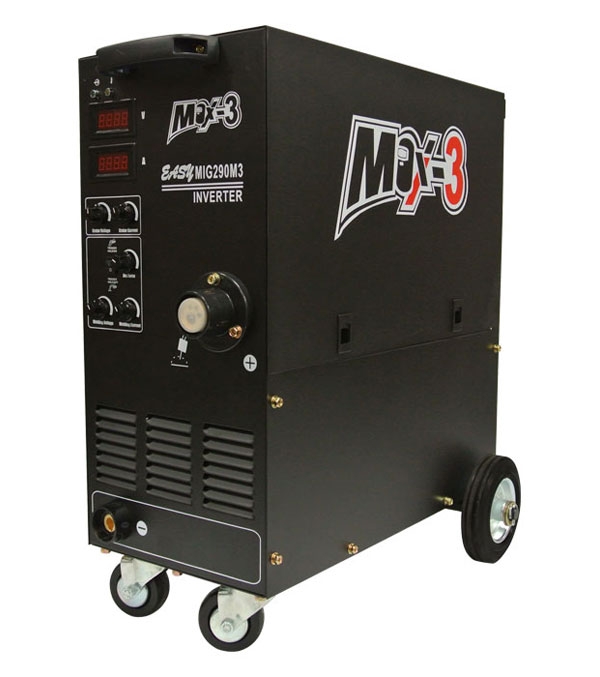

    MIG290M3N

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable
    • MB24 MIG Welding Torch
    • CO² Regulator

    Specification

    Rated Input Voltage: 3ph-415V/50/60Hz
    Rated Input Current (A): 10.8
    Rated Input Power (KVA): 7.8
    Welding Current (A): 50% @ 250
    Welding Voltage (V): 12 - 32
    No-load Voltage (V): 60
    Wire Diameter (M/min): 0.8-1.0
    Welding Thickness (mm): >12
    Cover Protection Grade: IP21S
    Insulation: F
    Packaging Size (mm): 790 x 480 x 760
    Weight (kg): 50
  • MIG290MV3F5 MIG290MV3F5
    • MIG290MV3F5

    MIG290MV3F5

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable
    • MB24 MIG Welding Torch
    • CO² Regulator
    • Wire Feeder (For MIG290 M-5M)

    Specification

    Rated Input Voltage: 3ph-415V/50/60Hz
    Rated Input Current (A): 13.4
    Rated Input Power (KVA): 8.8
    No Load Voltage (V): 62
    Rated Duty Cycle: 60%
    Welding Current (A): 50 - 250
    Welding Voltage (V): 15 - 27
    Finish Arc Current (A): 60-290
    Finish Arc Voltage (V): 8-40
    Wire Diameter (mm): ø0.8-ø1.0
    Welding Thickness (mm): >12
    Cover Protection Grade: IP21S
    Insulation: F
    Packaging Size (mm): 790 x 480 x 760
    Weight (kg): 52

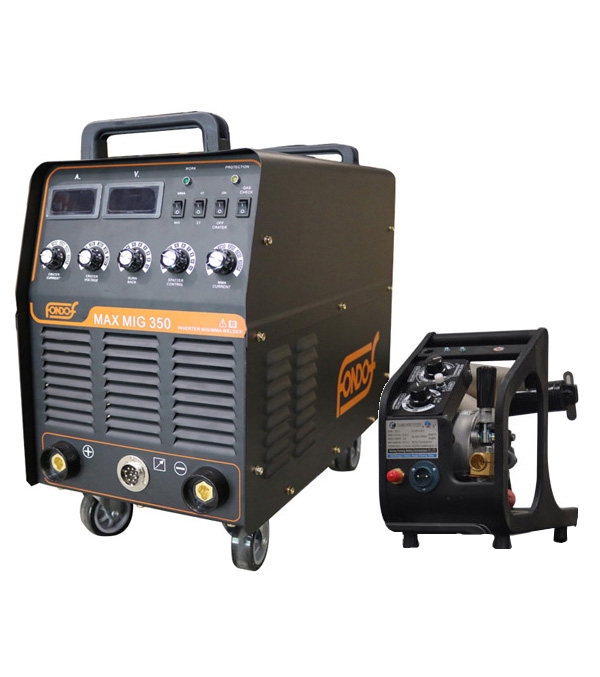

  • MAXMIG350F5N MAXMIG350F5N
    • MAXMIG350F5N

    MAXMIG350F5N

    Feature

    • Advanced stable digital control system, provides various adjustable parameters
    • Adopt soft magnetic ferrite materials for main transformer
    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • New protection system to prevent over current, over heat and missing phase
    • Adjustable slow feeding function to ensure arc ignition
    • Adjustable crater voltage and current to reach outstanding welding effect
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke
    • Strong ability against fluctuation

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • MIG Welding Torch
    • Wire Feeder

    Specification

    Rated Input Voltage / Hertz (V/Hz): 3PH/ 415V / 50-60Hz
    Rated Input Current (A): 22
    Rated Input Power (KVA): 14.5
    No Load Voltage (V): 67
    Rated Duty Cycle: 60%
    Welding Current (A): 60 - 350
    Current Adjustment Range(A) MMA/MIG: 50 - 350
    Current Adjustment Range(A) MIG: 17 - 32
    Welding Wire Diameter (MM): Ø0.8 - Ø1.2
    Wire Type: Solid/Flux Cord
    Welding Type: Manual Setting
    Post Gas Time (S): 0.1
    Gas Flow Time (S): 0-5
    Cover Protection Grade: IP21S
    Insulation Grade: F
    Packaging Size (mm): 650 x 325 x 625
    Weight (kg): 54

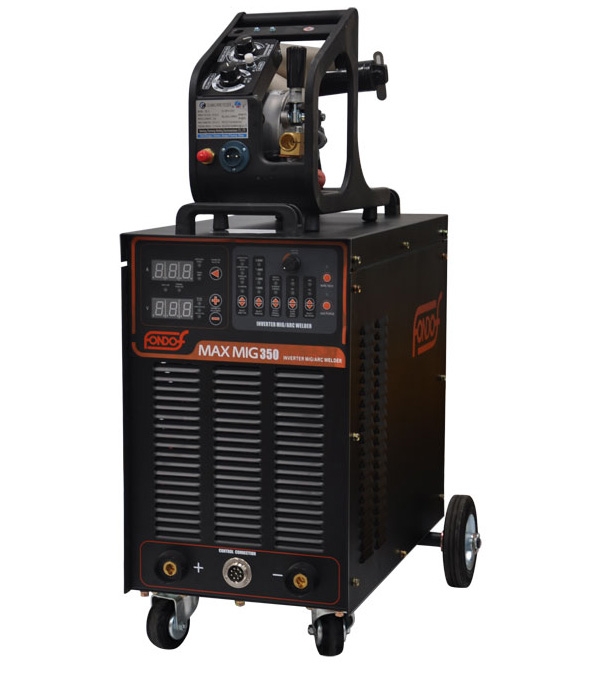

  • MAXMIG350F5D MAXMIG350F5D
    • MAXMIG350F5D

    MAXMIG350F5D

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Adjustable crater voltage and current to reach outstanding welding effect
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable
    • pma350 MIG Welding Torch
    • Heater CO² Regulator
    • Wire Feeder (5M)

    Specification

    Rated Input Voltage / Hertz (V/Hz): 3ph-415V/50/60Hz
    Rated Input Current (A): 21
    Rated Input Power (KVA): 14.5
    No Load Voltage (V): 62
    Rated Duty Cycle: 60%
    Welding Current (A): 60 - 350
    Welding Voltage (V): 12 - 36
    Wire Diameter (mm): ø0.8-ø1.2
    Wire Type: Solid/Flux Cord
    Welding Type: Manual Setting/Synergic
    Pre Gas Time(s): 0.1
    Gas Flow Time(s): 0~5
    Cover Protection Degree: IP21S
    Insulation: F
    Packaging Size (mm): 650 x 320 x 625
    Weight (kg): 54

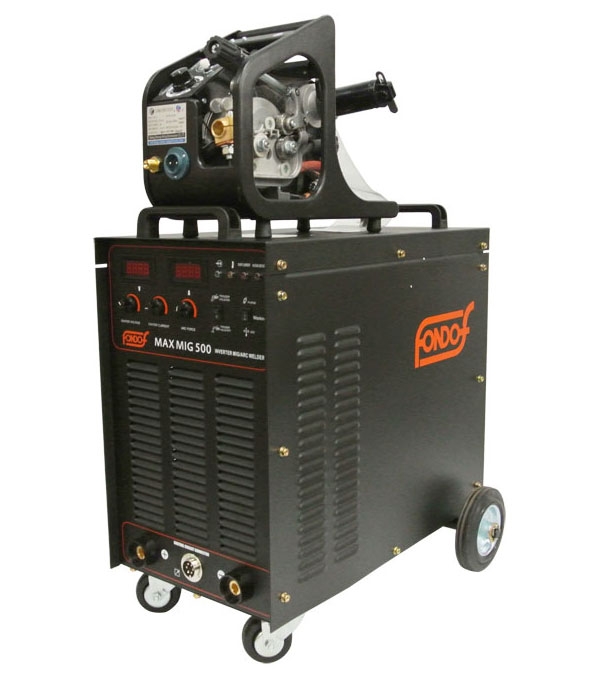

  • MAXMIG500F9 MAXMIG500F9
    • MAXMIG500F9

    MAXMIG500F9

    Feature

    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • Adjustable slow feeding function to ensure arc ignition
    • Adjustable crater voltage and current to reach outstanding welding effect
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable
    • pma500 MIG Welding Torch
    • Heater CO² Regulator
    • Wire Feeder (9M)

    Specification

    Rated Input Voltage / Hertz (V/Hz): 3ph-415V/50/60Hz
    Rated Input Current (A): 37
    Rated Input Power (KVA): 25
    No Load Voltage (V): 67
    Rated Duty Cycle: 60%
    Welding Current (A): 60 - 500
    Welding Voltage (V): 15 - 45
    Wire Diameter (mm): ø1.0-ø1.6
    Wire Type: Solid/Flux Cord
    Welding Type: Manual Setting/Synergic
    Pre Gas Time(s): 0.1
    Gas Flow Time(s): 0~5
    Cover Protection Degree: IP21S
    Insulation: F
    Packaging Size (mm): 650 x 320 x 625
    Weight (kg): 58

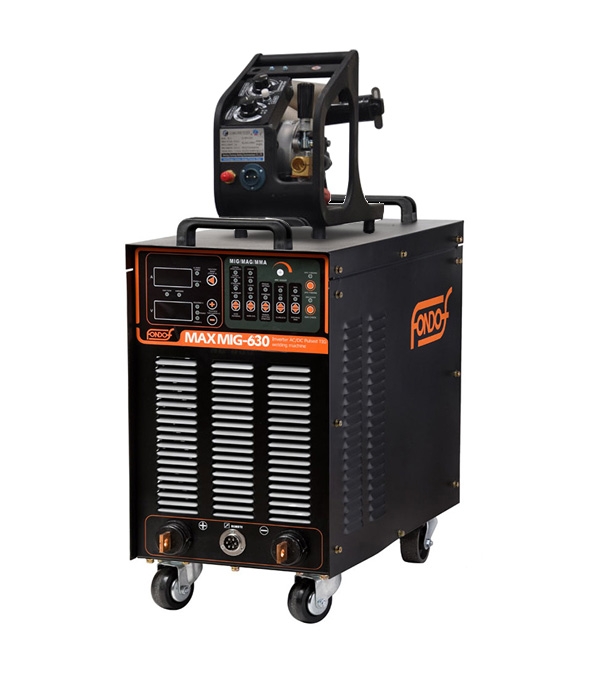

  • MAXMIG630F9D MAXMIG630F9D
    • MAXMIG630F9D

    MAXMIG630F9D

    Feature

    • Advanced stable digital control system, provides various adjustable parameters
    • Adopt soft magnetic ferrite materials for main transformer
    • Adopt PWM and PFM control technology, quick to react and stable to weld
    • Infinite voltage control
    • New protection system to prevent over current, over heat and missing phase
    • Adjustable slow feeding function to ensure arc ignition
    • Adjustable crater voltage and current to reach outstanding welding effect
    • Welding current and voltage preset function
    • Adjustable arc force for less spatter and smoke
    • Strong ability against fluctuation

    Optional Features

    • Positive and negative connection in reverse
    • Cylinder trolley

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • MIG Welding Torch
    • Wire Feeder

    Specification

    Rated Input Voltage / Hertz (V/Hz): 3ph-415V/50/60Hz
    Rated Input Current (A): 48
    Rated Input Power (KVA): 32
    No Load Voltage (V): 74
    Rated Duty Cycle: 60%
    Welding Current (A): 60 - 630
    Welding Voltage (V): 15 - 45
    Wire Diameter (mm): ø1.0-ø1.6
    Wire Type: Solid/Flux Cord
    Welding Type: Manual Setting/Synergic
    Pre Gas Time(s): 0.1
    Gas Flow Time(s): 0~5
    Cover Protection Degree: IP21S
    Insulation: F
    Packaging Size (mm): 700 x 320 x 625
    Weight (kg): 65

Product Range

*Pictures for illustration purposes only, may be subject to design and/or colour difference.*
