MAX3: Plasma Air Cutting

  • CUT20EC1 CUT20EC1
    • CUT 20 EC1CUT20EC1

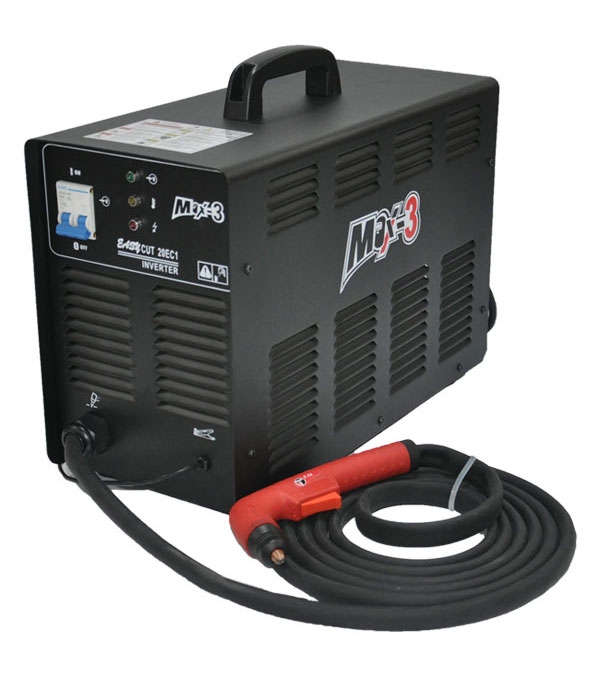

    CUT20EC1

    Feature

    • Advanced inverter technology for heavy-duty industrial user
    • Built-in, piston-driven compressor provides long life and superior airflow
    • Strong hot start
    • Post Flow Cooling for long-life tip and nozzle
    • Non-high frequency design for better environment

    Accessories Includes

    • Input power cord
    • Earth cable
    • Italy S-25K trafimet plasma cutting torch for EasyCUT20EC1

    Remark

    • The inner compressor enables the cutting site much more flexible
    • Small in size and light for carry especially suitable for high level and mobile operation

    Specification

    Rated Input Voltage (V/PH/Hz): 240V/1PH
    Power Frequency (Hz): 50/60Hz
    Rated Input Current (A): 19
    Rated Input Power (KVA): 2.3
    No-load Voltage (V): 320
    Cutting Current (A): 20A
    Rated Duty Cycle (%): 40%@20A
    Effeciency (Rated Duty Cycle %): ≥ 0.85
    Insulation Grade: F
    Cover Protection Grade: IP21S
    Max Cutting Thickness: <6mm Middle Steel
    Rated Cutting Thickness: 2mm Inch Middle Steel
    Packaging Size (mm): 490 x 220 x 400mm
    Weight (KGS): 20 KG
  • CUT40E1 CUT40E1
    • CUT40E1

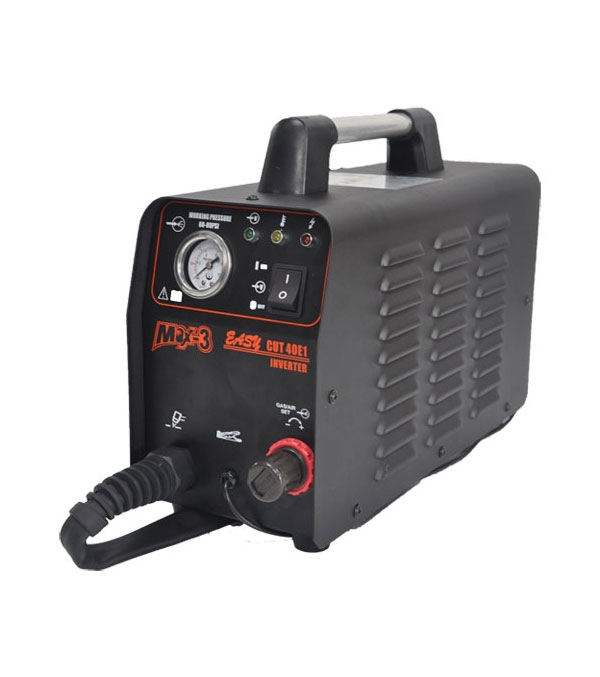

    CUT40E1

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable
    • PT-25C plasma torch

    Specification

    Rated Input Voltage (V): 1~240V
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 15
    Rated Input Power (KVA): 2.2
    No-load Voltage (V): 300
    Cutting Current (A): 20
    Rated Duty Cycle (%): 60
    Insulation Grade: F
    Protection Grade: IP23
    Maximum Cutting Thinkness (Steel): ≤ 9mm
    Packaging Size (mm): 555 x 255 x 320 mm
    Gross Weight: 9.5 kg
  • ADVCUT65M1 ADVCUT65M1
    • ADVCUT65M1

    ADVCUT65M1

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable
    • PT25 Plasma Torch

    Specification

    Rated Input Voltage (V): 1 Phase/240V
    Power Frequency: 50/60
    Rated Input Current (A): 19.8
    Rated Input Power (KVA): 4.7
    No-load Voltage (V): 290
    Cutting Current (A): 15-40
    Rated Duty Cycle (%): 60
    Insulation Grade: F
    Cutting Thickness (Steel Plate): ≤12mm
    Cooling Method: Air Cooling
    Packaging Size (mm): 532 x 290 x 378
    Weight (kg): 15
  • ADVMAXCUT70 ADVMAXCUT70
    • ADVMAXCUT70

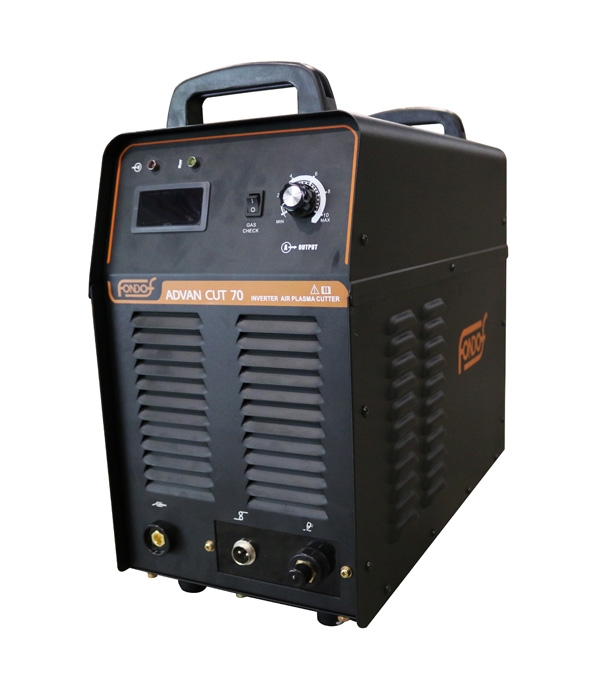

    ADVMAXCUT70

    Feature

    • Advanced Stable Digital Control System
    • Provides various adjustable parameters
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated

    Accessories Includes

    • Input power cord
    • Earth cable
    • P80 plasma cutting torch

    Specification

    Rated Input Voltage (V): AC3-380-415v±10%
    Power Frequency (Hz): 50/60
    Phase Number: 3
    Rated Input Current (A): 14.8
    Rated Input Power (KVA): 9.7
    No-load Voltage (V): DC305
    Cutting Voltage (V): 86-104
    Cutting Current (A): 25-60
    Rated Duty Cycle (%): 60
    Efficiency: ≥85%
    Max Piercing Thickness: <25mm (Steel)
    Arc Striking Method: High Frequency
    Compress Air Presure: 0.3mPa-0.7mPa
    Protection Grade: IP21S
    Weight (kg): 26
    Dimention (mm): 610 x 310 x 570
  • ADVMAXCUT80D ADVMAXCUT80D
    • ADVMAXCUT80D

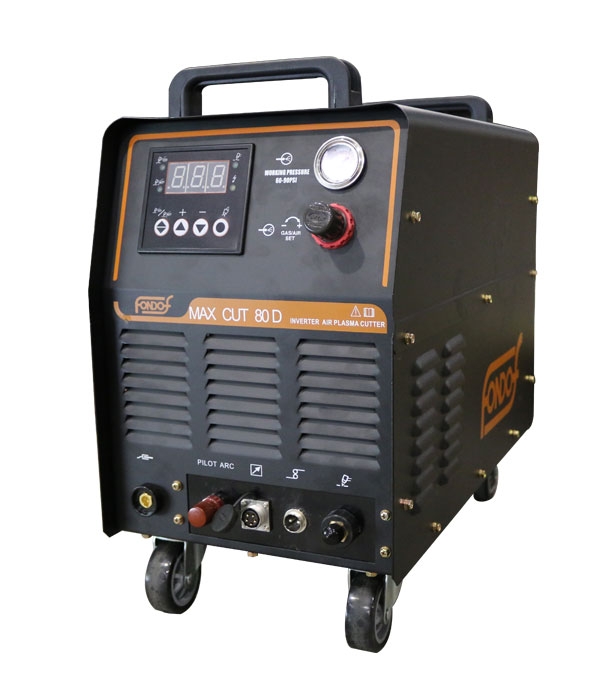

    ADVMAXCUT80D

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • P80 plasma cutting torch

    Specification

    Rated Input Voltage (V): 3-415
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 11.2
    Rated Input Power (KVA): 7.3
    No-load Voltage (V): 300
    Cutting Current (A): 15~60
    Rated Duty Cycle (%): 60
    Air Requirement: 60-80PSI@4-6kg/cm²
    Insulation Grade: F
    Protection Grade: IP21S
    Cutting Thinkness: ≤ 35mm (Steel)
    Arc Ignition Mode: Non-Contact
    Packaging Size (mm): 710 x 423 x 575
    Weight (kg): 50
  • MAXCUT120 MAXCUT120
    • MAXCUT120

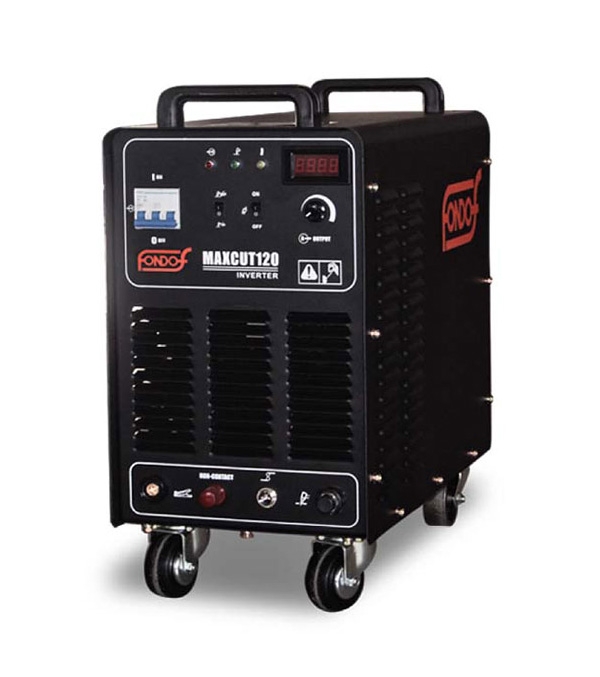

    MAXCUT120

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable
    • P80 plasma cutting torch

    Specification

    Rated Input Voltage (V): 3 - 415
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 28
    Rated Input Power (KVA): 18.3
    No-load Voltage (V): 300
    Cutting Current (A): 15~120
    Air Requirement: 60-80PSI@4-6kg/cm²
    Rated Duty Cycle (%): 60
    Insulation Grade: F
    Protection Grade: IP21S
    Cutting Thinkness: ≤ 45mm (Steel)
    Arc Ignition Mode: Non-Contact
    Packaging Size (mm): 685 x 385 x 710
    Weight (kg): 55
  • MAXCUT120D MAXCUT120D
    • MAXCUT120D

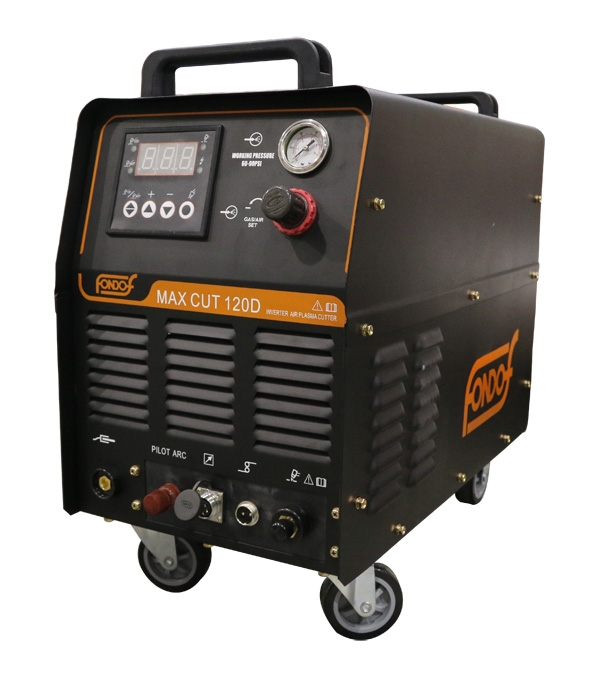

    MAXCUT120D

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable
    • P80 plasma cutting torch

    Specification

    Rated Input Voltage (V): 3 - 415
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 20
    Rated Input Power (KVA): 13
    No-load Voltage (V): 300
    Cutting Current (A): 15~120
    Rated Duty Cycle (%): 100
    Air Requirement: 60-80PSI@4-6kg/cm²
    Insulation Grade: F
    Protection Grade: IP21S
    Cutting Thinkness: ≤ 45mm (Steel)
    Packaging Size (mm): 710 x 423 x 575
    Weight (kg): 55
    Arc Ignition Mode: Non-Contact
  • MAXCUT160D MAXCUT160D
    • MAXCUT160D

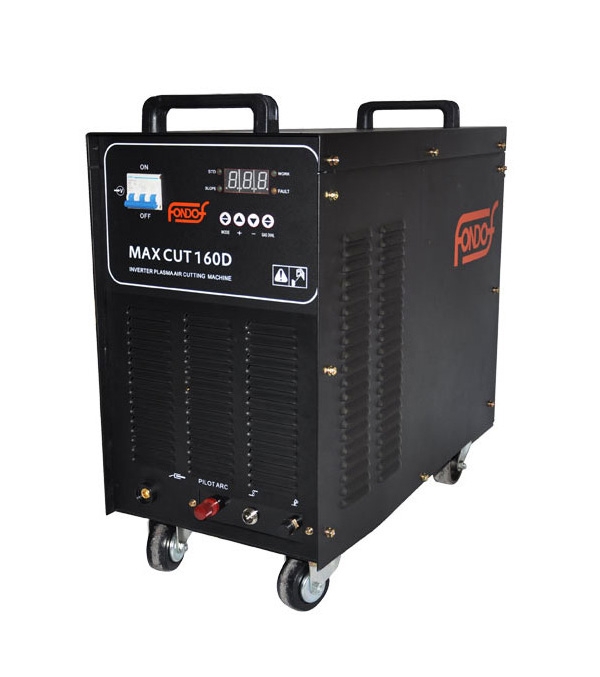

    MAXCUT160D

    Feature

    • Advanced inverter technology
    • Strong hot start
    • Smart Dimension and light for carry
    • Air filter and regulator integrated
    • LED Digits indicators

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • LT151A plasma cutting torch

    Specification

    Rated Input Voltage (V): 3~415
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 38
    Rated Input Power (KVA): 27.3
    No-load Voltage (V): 300
    Cutting Current (A): 25-160
    Rated Duty Cycle (%): 100
    Insulation Grade: F
    Protection Grade: IP21S
    Cutting Thinkness (Carbon Plate): ≤ 50mm (Steel)
    Max Piercing Thickness: 50mm
    Stainless Steel: 50mm
    Aluminium: 35mm
    Weight (kg): 50
    Packaging Size (mm): 780 x 360 x 680

Product Range

*Pictures for illustration purposes only, may be subject to design and/or colour difference.*
