MAX3: Stick Welding Machine

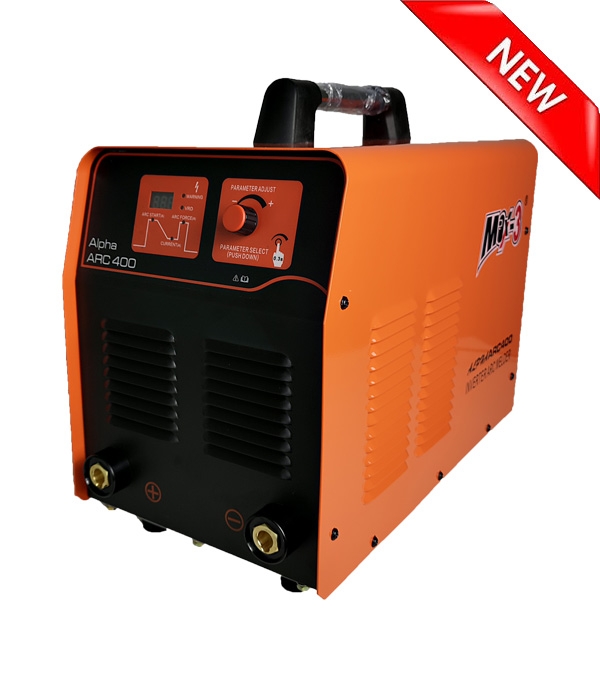

  • ARC400 Alpha ARC400
    • ARC400

    Alpha ARC400

    Specification

    Rated Input Voltage (V): 3ph - 415V
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 35
    Rated Input Power (KVA): 21.3
    No-load Voltage (V): 81
    Rated Duty Cycle% (40℃): 30%
    Welding Current (A): 15~400
    Welding Voltage (A): 30.6 - 36
    ARC Start Current (A): 15~400
    ARC Force Current (A): 0~30%
    Efficiency (Rated Conditions): ≥85%
    Insulation Class: F
    Protection Grade: IP21S
    Dimension (mm): 500*260*390
    Net Weight (kg): 15KGS
    Type of Cooling: Air Cooling
  • MINIXP165M MINIXP165M
    • MINIXP165M

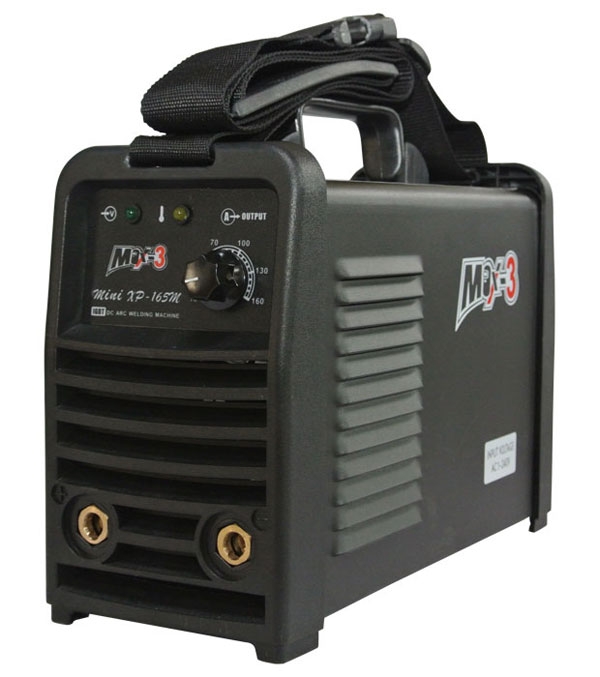

    MINIXP165M

    Feature

    • With advanced Inverter Technology
    • PWM control system provides constant current and precise current control
    • High efficiency and economical energy usage
    • Elegant shape of seam with smooth arc striking
    • Small in size, firm in structure and light for carry, expecially suitable for high altitude and mobile operation
    • Thermal and voltage overload protection

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • Welding cable and clamp

    Specification

    Rated Input Voltage (V): AC240V
    Power Frequency: 50/60
    Phase: 1
    Rated Input Current (A): 22
    Rated Input Power (KVA): 4.9
    No-load Voltage (V): 65
    Welding Current (A): 10 - 160
    Welding Voltage (V): 20.4 ~ 26.4
    Rated Duty Cycle (%): 60%
    Insulation Grade: F
    Cover Protection Level: IP21S
    Type of Cooling: Air Cooling
    Packaging Size (mm): 320 x 120 x 200
    Weight (kg): 4.3 KG
  • ARC210M1 ARC210M1
    • ARC210M1

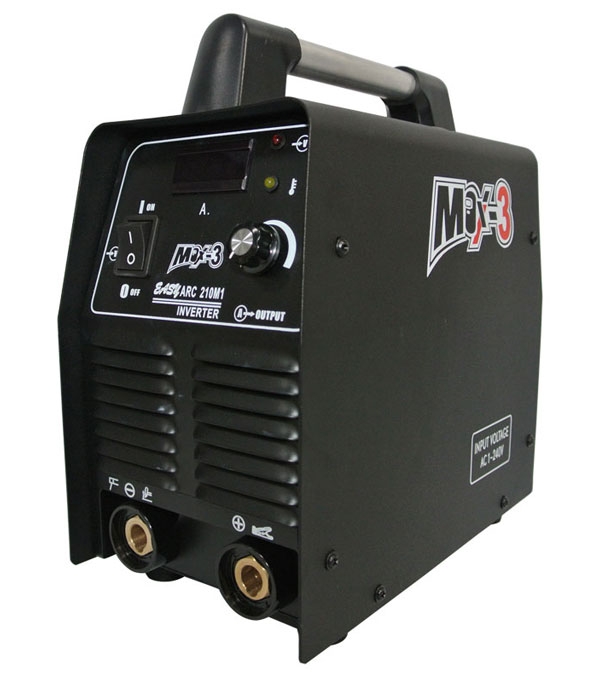

    ARC210M1

    The Inverter EASY ARC 210M1 Series designed in single phase (240volt) heavy duty, portable, more reliable. With Advance features of Lift TIG Start, Constant Arc Control designed for Stick welding of steel and other DC weld able materials.

    Feature

    • Lift-Arc Ignition(TIG) - Soft arc striking is ensured by lift-Arc Ignition.
    • More protection - The main P.C Board and electronic parts are enclosed and separated in different compartment and always free from Metal dust.
    • Overload protection - Thermostat prevents the machine from overload.

    Accessories Includes

    • Input power cord
    • Earth cable and clamp
    • Welding cable and clamp

    Application

    • Lift TIG and Stick welding
    • Over voltage input protection

    Recommended Application

    • MMAW (DC Stick)
    • GMAW (Scratch TIG)

    Specification

    Rated Input Voltage(v): 1-240V
    Frequency (Hz): 50/60
    Rated Input Current (A): 28
    Rated Input Power (KVA): 6.6
    No-load Voltage (V): 60
    Welding current(A): 20~200
    Welding voltage(V): 20.8~28
    Rated duty cycle(%): 60%
    Cooling method: Air cooling
    Packaging Size (mm): 378 x 240 x 435
    Weight(kg): 7.5
    Insulation Grade: F
    Cover Protection Level: 1P21S
  • ADVARC250M1 ADVARC250M1
    • ADVARC250M1

    ADVARC250M1

    Feature

    • With advanced PWM control technology
    • Small in size, film in structure and light for carry, especially Suitable for high altitude and mobile operation.
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Earth clamp set
    • Holder set

    Specification

    Rated Input Voltage(v): 1-240V
    Frequency (Hz): 50/60
    Rated Input Current (A): 46
    Rated Input Power (KVA): 11
    No-load Voltage (V): 65
    Welding current(A): 20~250
    Welding voltage(V): 20.8~28
    Rated duty cycle(%): 50%
    Cooling method: Air cooling
    Packaging Size (mm): 532 x 290 x 378
    Weight(kg): 10
    Insulation Grade: F
    Cover Protection Level: 1P21S

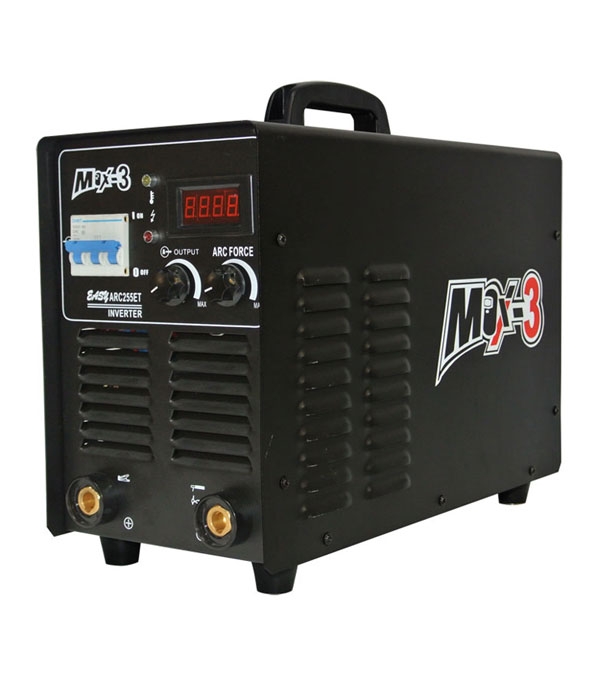

  • ARC255ET ARC255ET
    • ARC255ET

    ARC255ET

    Feature

    • With advanced PWM control technology
    • Small in size, film in structure and light for carry, expecially Suitable for high altitude and mobile operation.
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Earth clamp set
    • Holder set

    Specification

    Rated Input Voltage (Ph/V): 3-415V
    Power Frequency (Hz): 50/60
    Rated Input Current (A): 13.8
    Rated Input Power (KVA): 9.1
    No-load Voltage (V): 60
    Welding Current (A): 20~250
    Welding Voltage (V): 20.6~30
    Rated Duty Cycle (%): 60
    Cooling Method: Air Cooling
    Packaging Size (mm): 520 X 250 X 480
    Weight: 21
    Insulation Degree: F
    Cover Protection Degree: IP21S

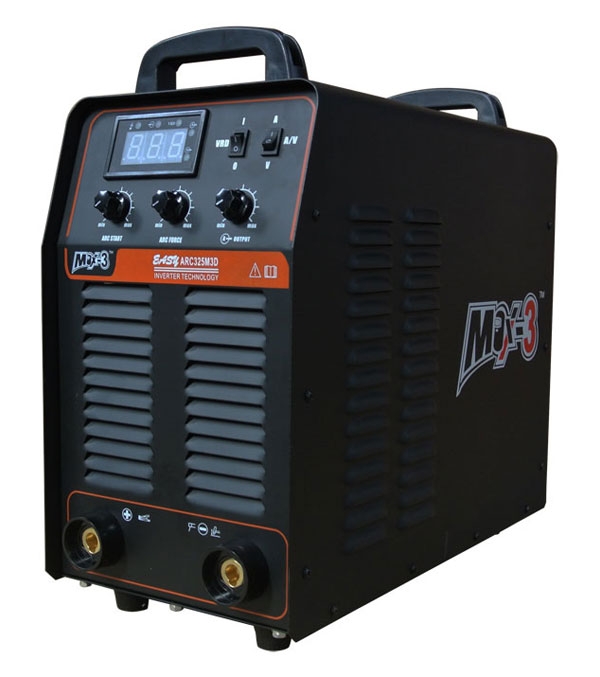

  • ARC325M3D ARC325M3D
    • ARC325M3D

    ARC325M3D

    Feature

    • With advanced PWM control technology
    • Small in size, film in structure and light for carry, especially Suitable for high altitude and mobile operation.
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Application

    • Lift TIG and Stick welding
    • Over voltage input protection

    Recommended Application

    • MMAW (DC Stick)
    • GMAW (Scratch TIG)

    Specification

    Rated Input Voltage (Ph/V): 3 Phase/415V
    Power Frequency (HZ): 50/60
    Rated Input Current (A): 17
    Rated Input Power (KVA): 12.2
    No-load Voltage (V): 64V
    Welding Current (A): 20~315
    Rated Duty Cycle (%): 35%
    Cooling Method: Air Cooling
    Packaging Size (mm): 610x310x570
    Insulation Degree: F
    Protection Grade: 1P21S
    Weight (kg): 30

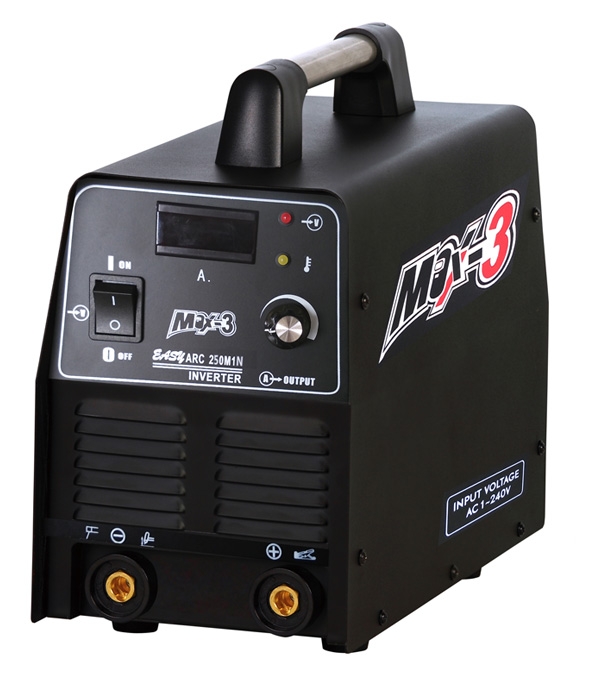

  • EASY ARC250M1N EASY ARC250M1N
    • EASY ARC250M1N

    EASY ARC250M1N

    Specification

    Rated Input Voltage: 1ph-240V 50/60Hz
    Rated Input Current (A): 35
    Welding Current (A): 20-200
    No-load Voltage: 83
    Rated Duty Cycle: 60%(25C)
    Insulation Grade: F
    Welding Voltage (V): 20.8-28
    Rated Input Power (KVA): 8.4
    Type Of Cooling: Air Cooling
    Cover Protection Level: IP21S
    Weight: 8.7Kgs
    Packaging Size(mm): 400 X 180 X 325

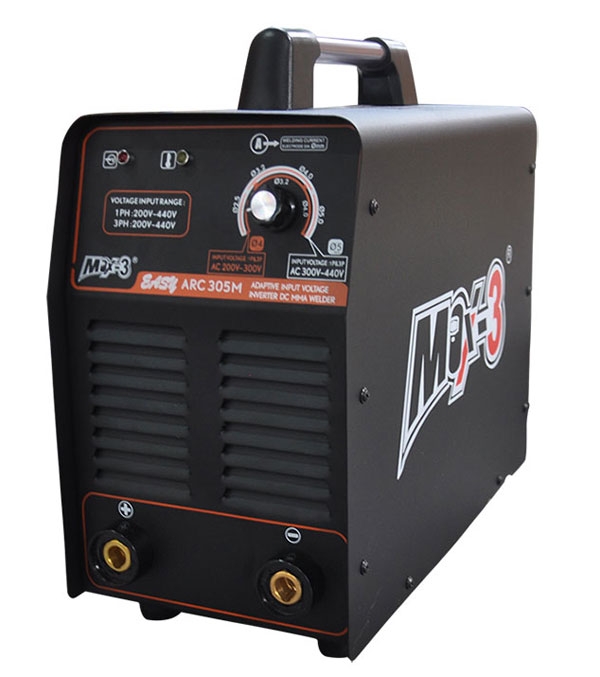

  • EASYARC305M EASYARC305M
    • EASYARC305M

    EASYARC305M

    Feature

    • With advanced PWM control technology
    • Small in size, film in structure and light for carry, especially Suitable for high altitude and mobile operation.
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Strong ability against electricity fluctuation
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Application

    • Lift TIG and Stick welding
    • Over voltage input protection

    Recommended Application

    • MMAW (DC Stick)
    • GMAW (Scratch TIG)

    Specification

    Rated Input Voltage (V): （1P）or（3P）/ AC200V—440V
    Frequency (HZ): 50/60
    Phase: 1 or 3
    MAX Rated Input Current (A): 28A（1P-230V)
    14A (3P-415V)
    MAX Rated Input Power (KVA): 9
    External Breaker（A）: 40
    External Breaker Mode: 40A/AC450V
    No Load Voltage (V): 100
    Welding Current(A): 20～250A（3P-415V）
    20～180A（1P-230V）
    Duty cycle(%): 60%
    Efficiency (Rated Condition): ≥0.80
    Cover protection level: IP21S
    Cooling Method: Air Cooling
    Electrode Applicable Specifications (diameter mm): 2.5-5.0
    Packaging Size (mm): 417 X 205 X 340
    Weight (kg): 39

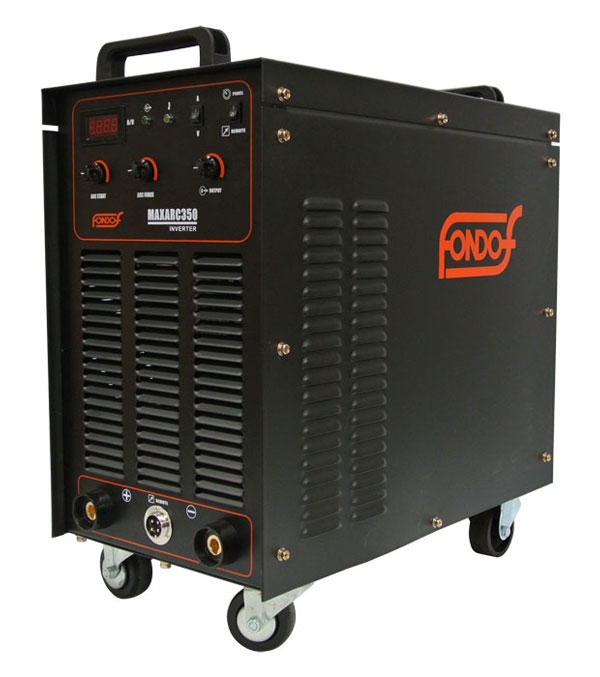

  • MAXSTICK350 MAXSTICK350
    • MAXSTICK350

    MAXSTICK350

    Feature

    • With advanced PWM control technology
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Remote Control for Model 350 / 400 / 500 / 630

    Specification

    Rated Input Voltage (V/Hz): 3/415V±10%/50Hz
    Rated Input Current (A): 17.3
    Rated Input Power (KVA): 12
    External Breaker Model: 20A
    Input Cabel Specification: 4mm2
    Welding Current (A): 20 - 350
    No-load Voltage (V): 21-34
    Rated Duty Cycle: 60%
    Efficiency: ≥0.89
    Cover Protection Grade: IP21S
    Cooling Method: Air Cooling
    Electrode Applicable Specifications (diameter mm): 2.5-5.0
    Packaging Size (mm): 600 X 300 X 600
    Weight (kg): 39
    Power Factor: 0.95

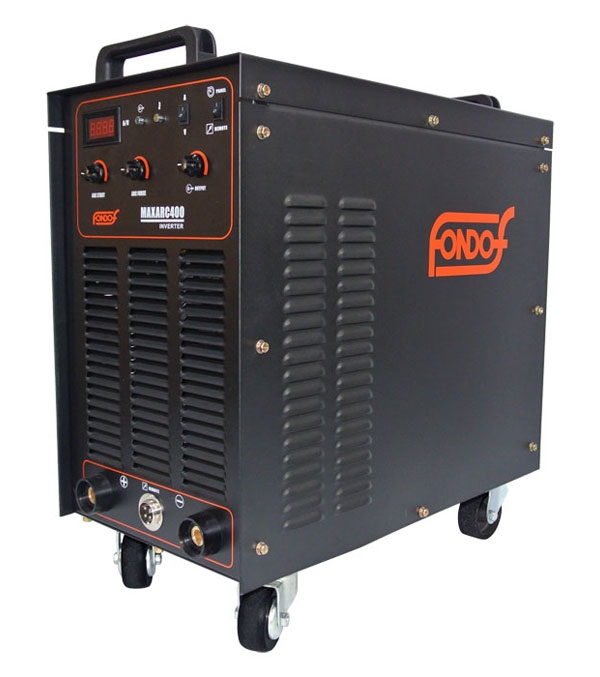

  • MAXSTICK400 MAXSTICK400
    • MAXSTICK400

    MAXSTICK400

    Feature

    • With advanced PWM control technology
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Remote Control for Model 350 / 400 / 500 / 630

    Specification
    Rated Input Voltage (V): 3PH380
    Frequency: 50/60
    Rated Input Current (A): 26
    Rated Input Power (KVA): 17
    No-load Voltage (V): 72
    Welding Current (A): 20 - 400
    Rated Duty Cyccle 60%: 400A/36V
    Rated Duty Cycle 100%: 310A/32.4V
    Efficiency (Rated Conditions): ≥0.85
    Welding Thickness Range (mm): 4~8
    Electrode Applicable Specifications (diameter mm): 2.5-4.0
    Insulation: F
    Cover Protection Degree: IP21S
    Packaging Size (mm): 600 x 300 x 600
    Weight (kg): 42

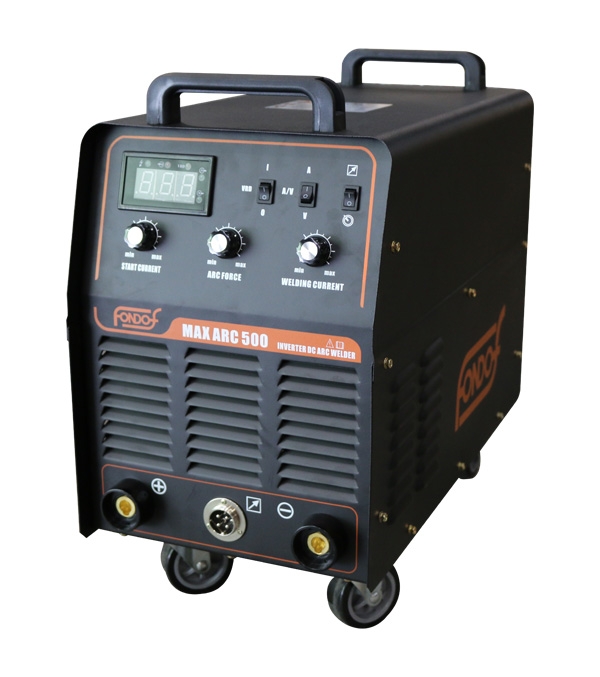

  • MAXSTICK500N MAXSTICK500N
    • MAXSTICK500N

    MAXSTICK500N

    Feature

    • With advanced PWM control technology
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Remote Control for Model 350 / 400 / 500 / 630

    Specification

    Rated Input Voltage (V): 3PH380
    Frequency: 50/60
    Rated Input Current (A): 38
    Rated Input Power (KVA): 25
    No-load Voltage (V): 74
    Welding Current (A): 20 - 500
    Rated Duty Cyccle 60%: 500A/40V
    Rated Duty Cycle 100%: 387A/35.5V
    Efficiency (Rated Conditions): ≥0.85
    Welding Thickness Range (mm): ›8~12
    Electrode Applicable Specifications (diameter mm): 2.5-5.0
    Insulation: F
    Cover Protection Degree: IP21S
    Packaging Size (mm): 690 x 360 x 730
    Weight (kg): 63

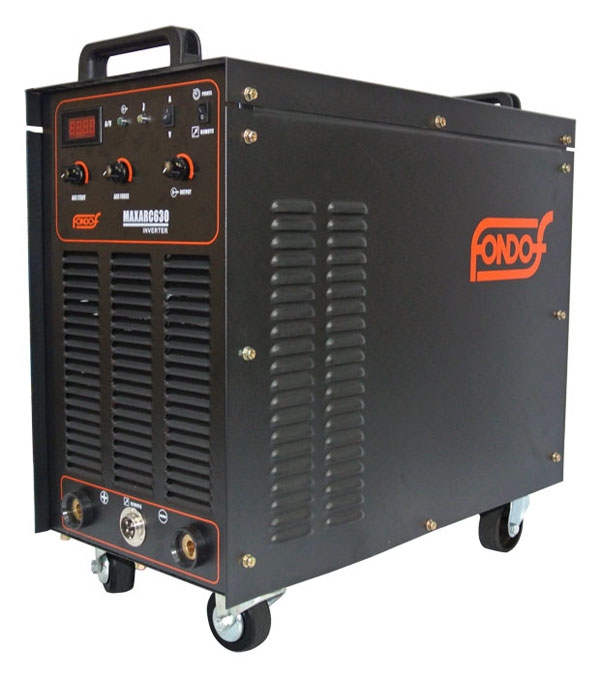

  • MAXSTICK630D MAXSTICK630D
    • MAXSTICK630D

    MAXSTICK630D

    Feature

    • With advanced PWM control technology
    • Accurate current preset function guarantees actual current
    • Multi-protections highly reliable
    • Friendly control panel. Applicable for acidic rod, alkalescent rod, fibrin rod and refrantory steel rod.

    Accessories Includes

    • Remote Control for Model 350 / 400 / 500 / 630

    Specification

    Rated Input Voltage (V): 3PH380
    Frequency: 50/60
    Rated Input Current (A): 50
    Rated Input Power (KVA): 33
    No-load Voltage (V): 89
    Welding Current (A): 20 - 630
    Rated Duty Cyccle 60%: 630A/44V
    Rated Duty Cycle 100%: 488A/39.5V
    Efficiency (Rated Conditions): ≥0.85
    Welding Thickness Range (mm): >12
    Electrode Applicable Specifications (diameter mm): 2.5-6.0
    Insulation: F
    Cover Protection Degree: IP21S
    Packaging Size (mm): 690 x 360 x 730
    Weight (kg): 65

Product Range

*Pictures for illustration purposes only, may be subject to design and/or colour difference.*
